E-commerce platforms have strict price controls, please consult customer service for details. Any price violations will be reported, thank you for your cooperation!

Export certificates for Europe and America: CPC/ASTM/CPSIA/62115 (USA), CE/EN71/UKCA/ROHS (Europe)

MSDS/UN38.3/Air Freight/Sea Freight (Batteries)

For detailed English images and videos, please contact customer service

High-speed vehicle products, if there are no quality issues upon receipt, returns are not supported after use on the road, only repairs are supported. If you mind, please purchase with caution!

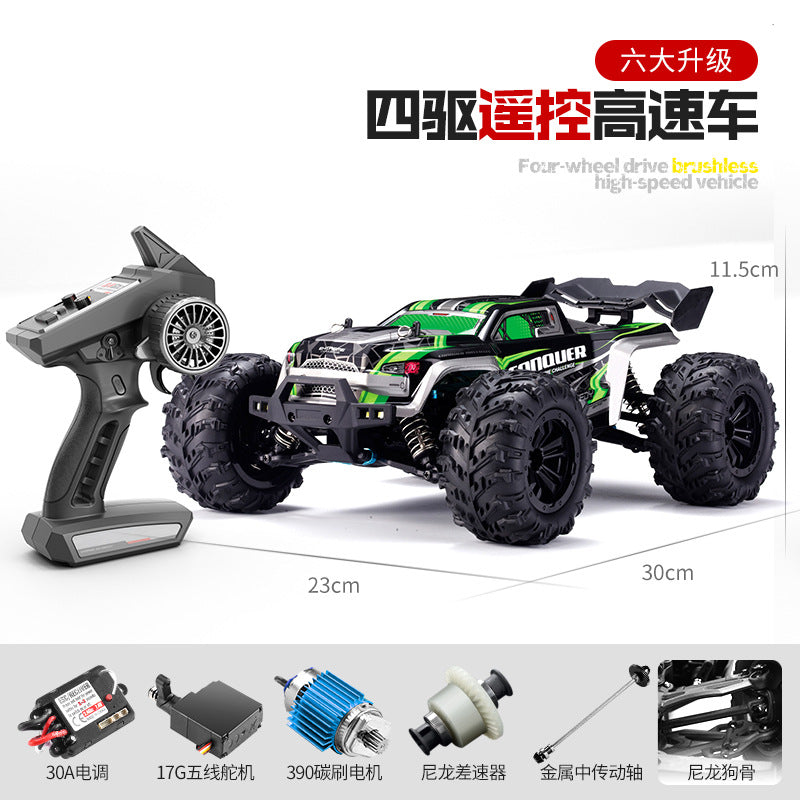

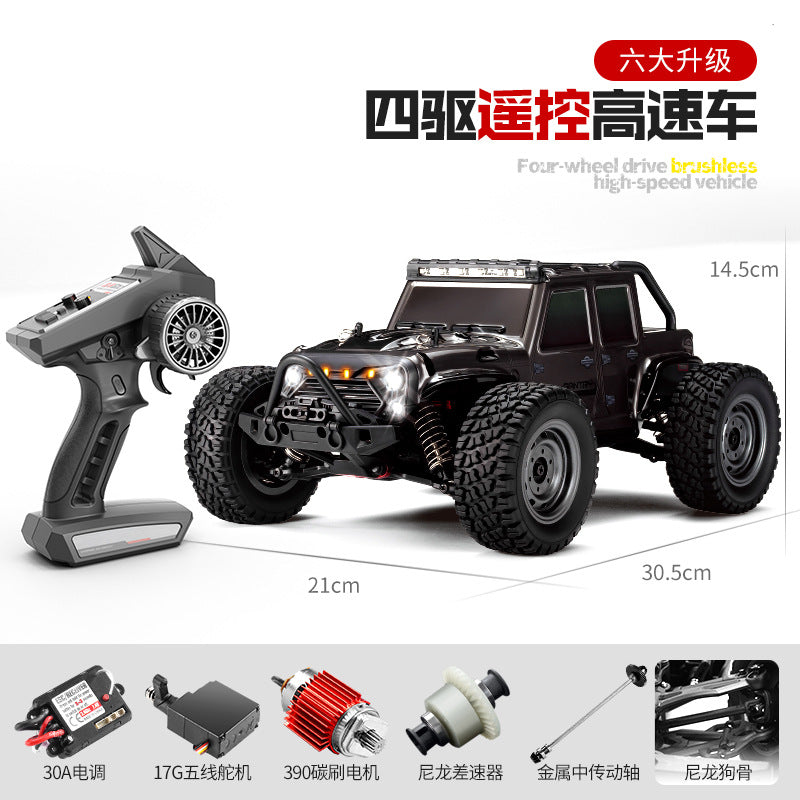

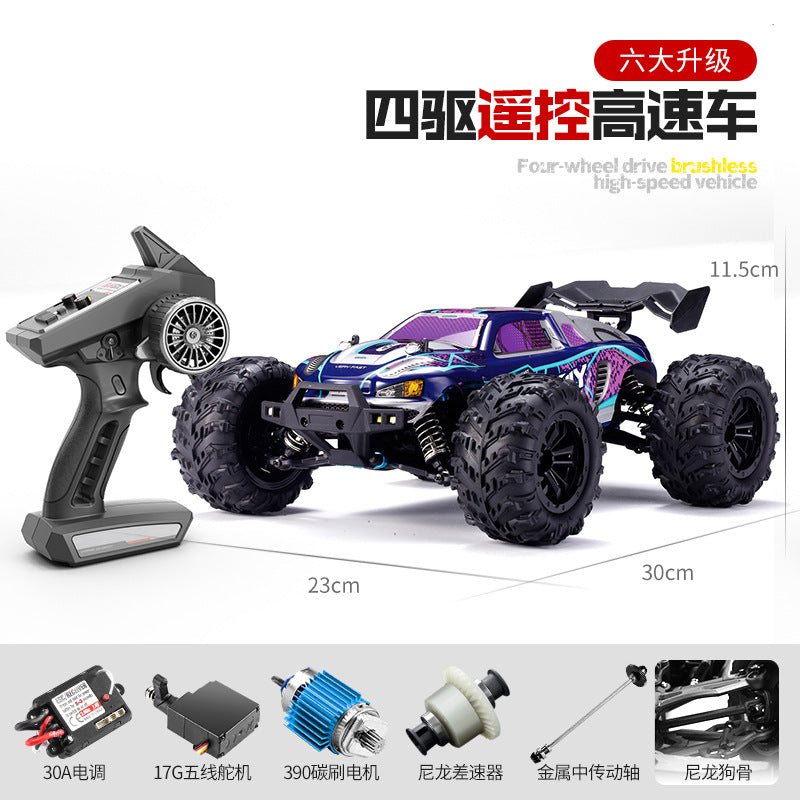

Model: 16101 1/16 Electric Four-Wheel Drive Big Truck (Coupe) / 16102 1/16 Electric Four-Wheel Drive Big Truck (Pickup)

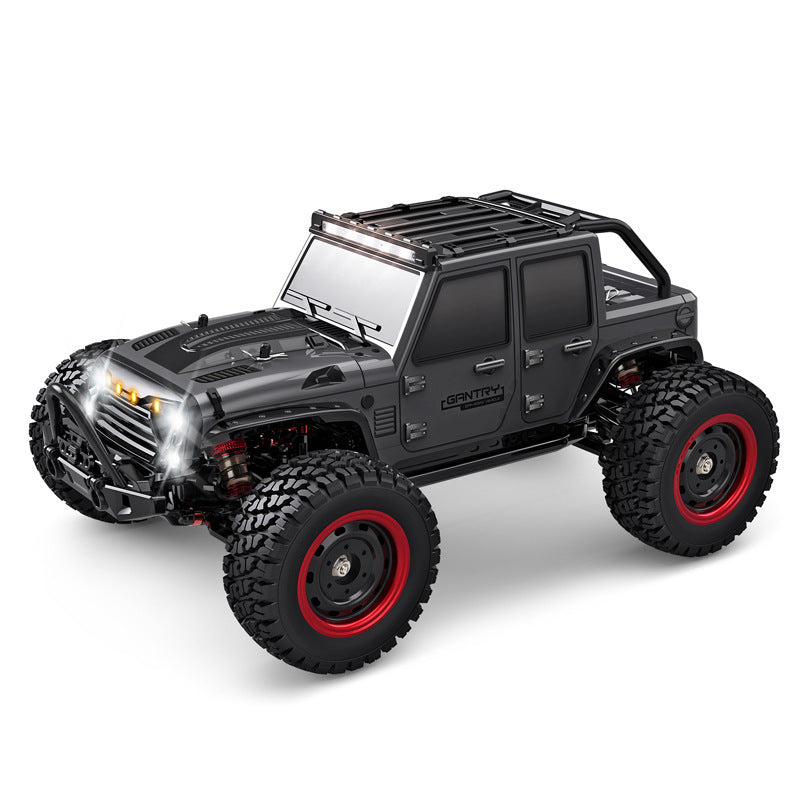

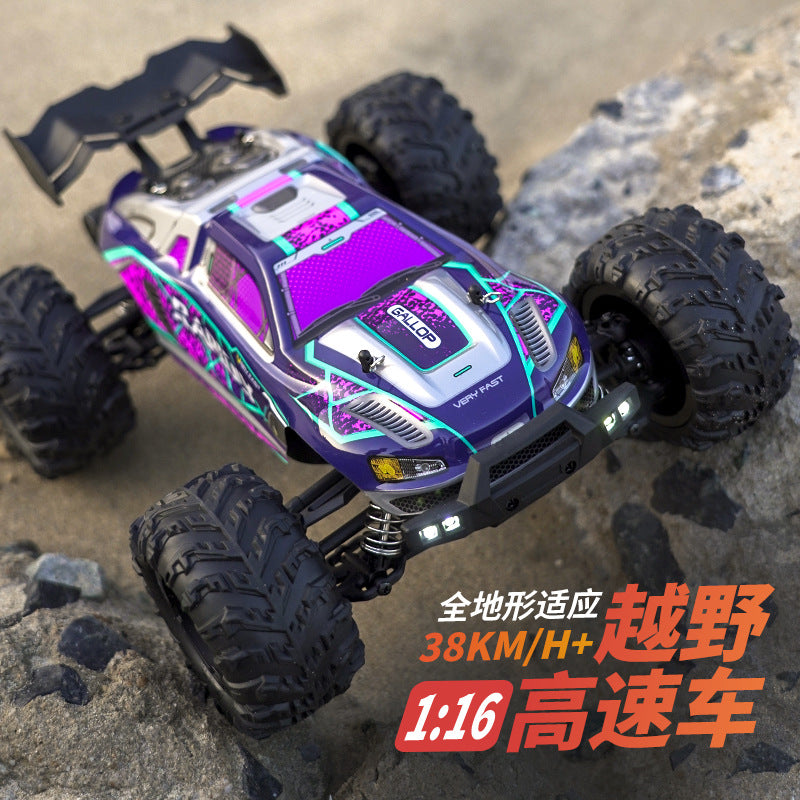

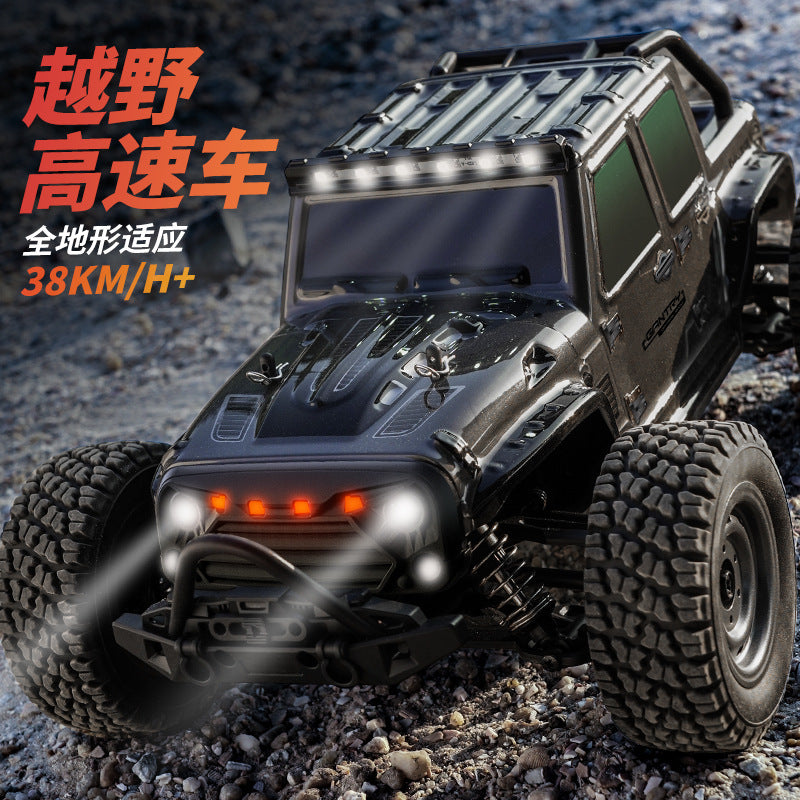

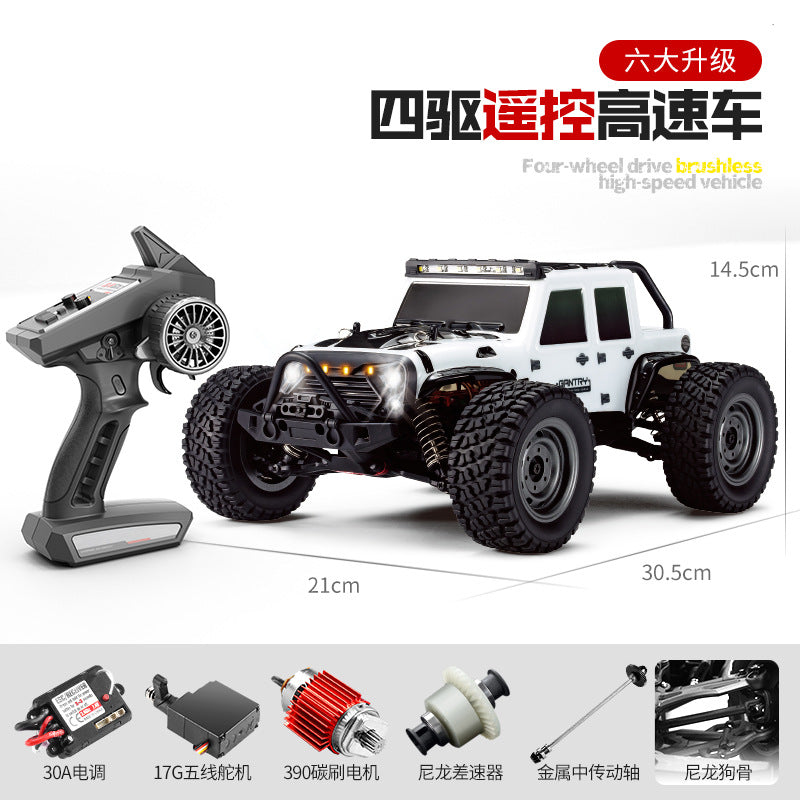

16103 1/16 Electric Four-Wheel Drive Off-Road Vehicle (Jeep) / 16201 1/16 Electric Four-Wheel Drive Racing Off-Road Vehicle

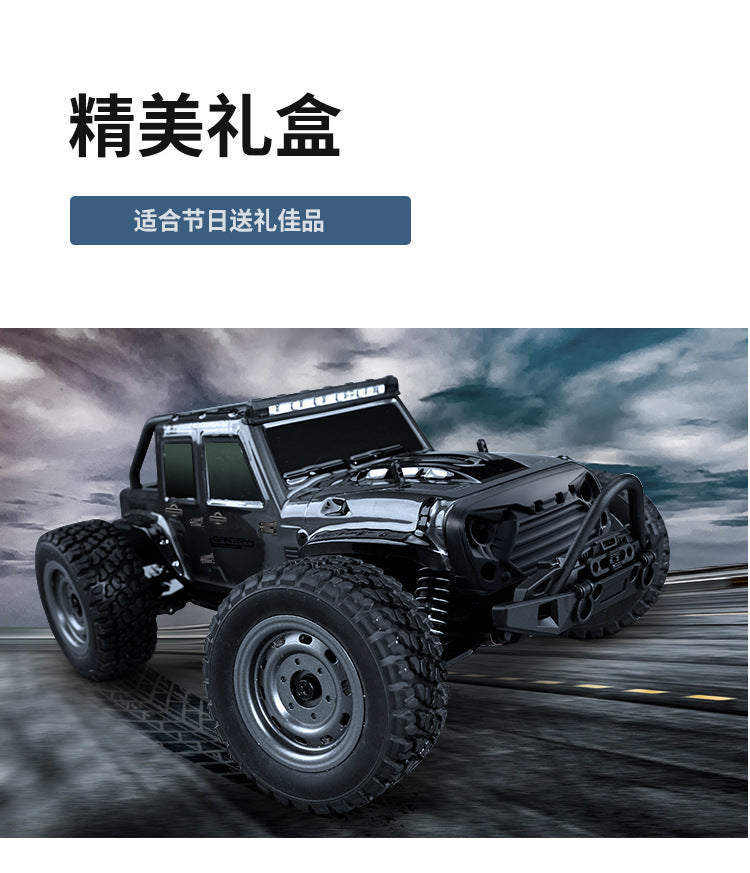

Packaging method: English-style hand-held color box

Number of items per box: 8 PCS

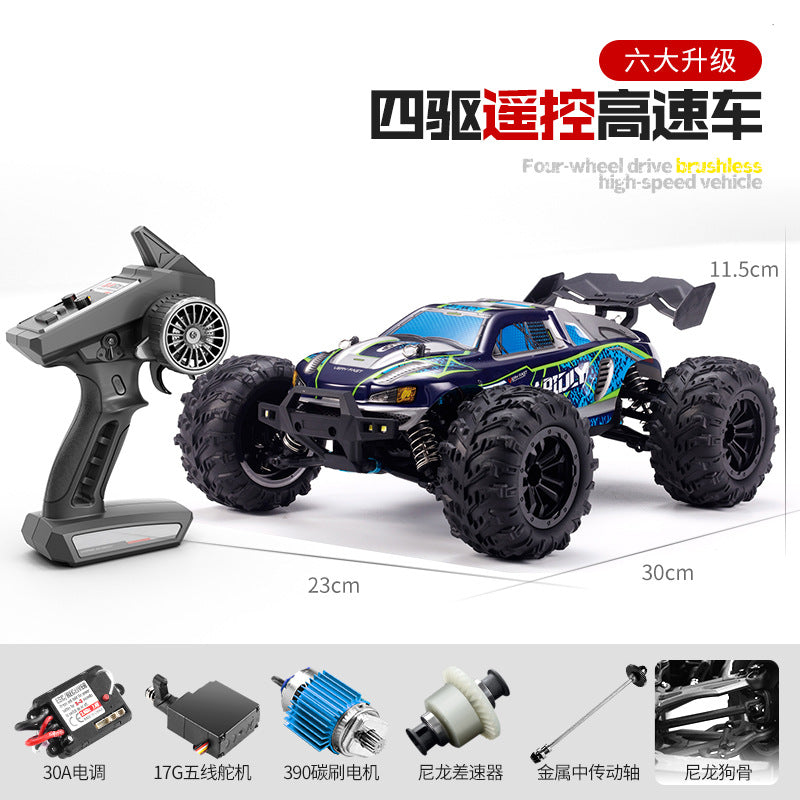

Product dimensions: 30*23*11.5 CM

Remote control dimensions: 13*7.5*21 CM

Color box dimensions: 30.6*14.8*24.1 CM

Outer box dimensions: 61.5*31.5*50 CM

Gross weight/net weight: 13.9/12.8 KGS

Body weight: 930g

Weight including packaging: 1600g

Lighting Configuration: LED headlights

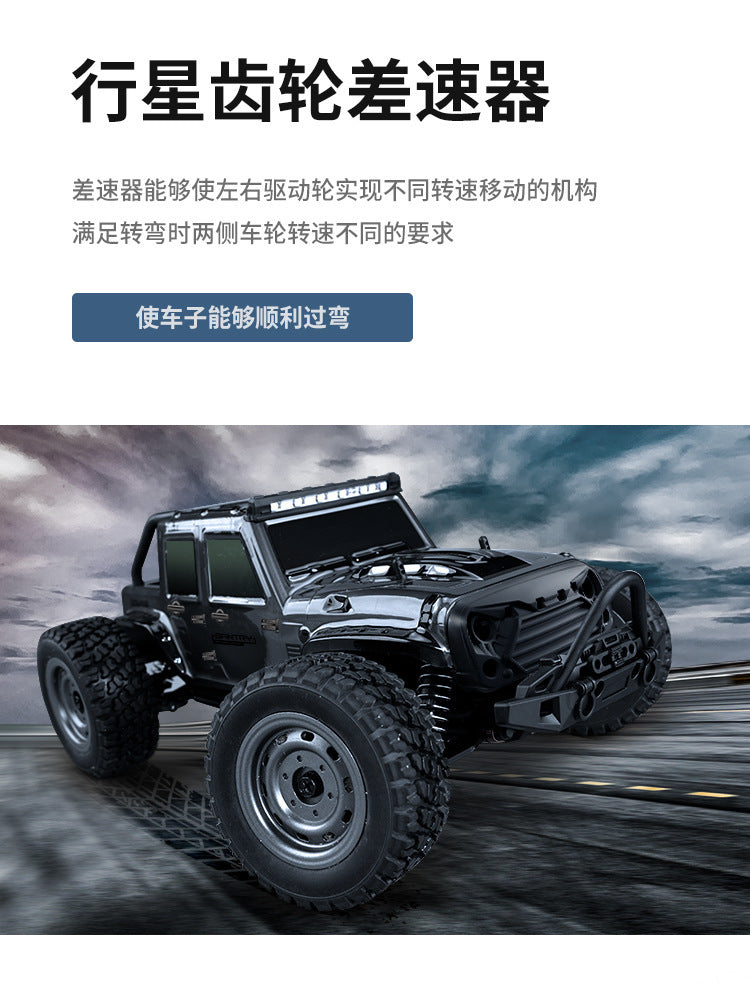

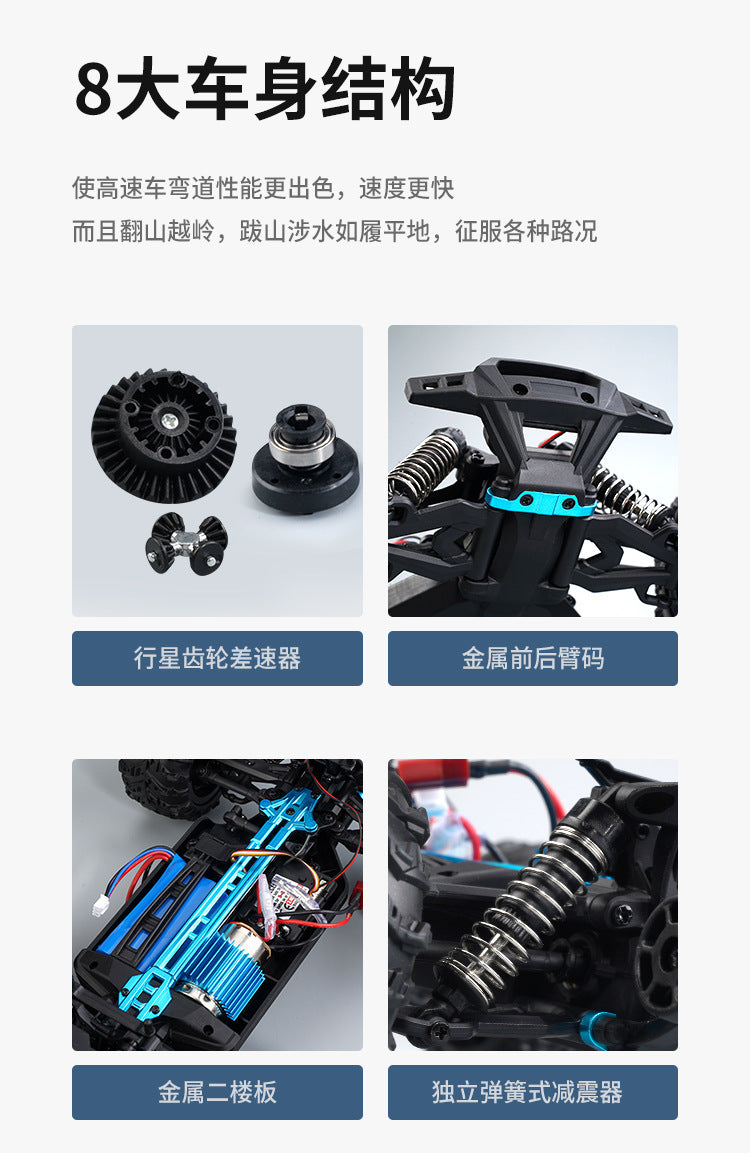

Differential structure: Front and rear nylon gear planetary differential

Materials: Hardware; Electronics; Plastic

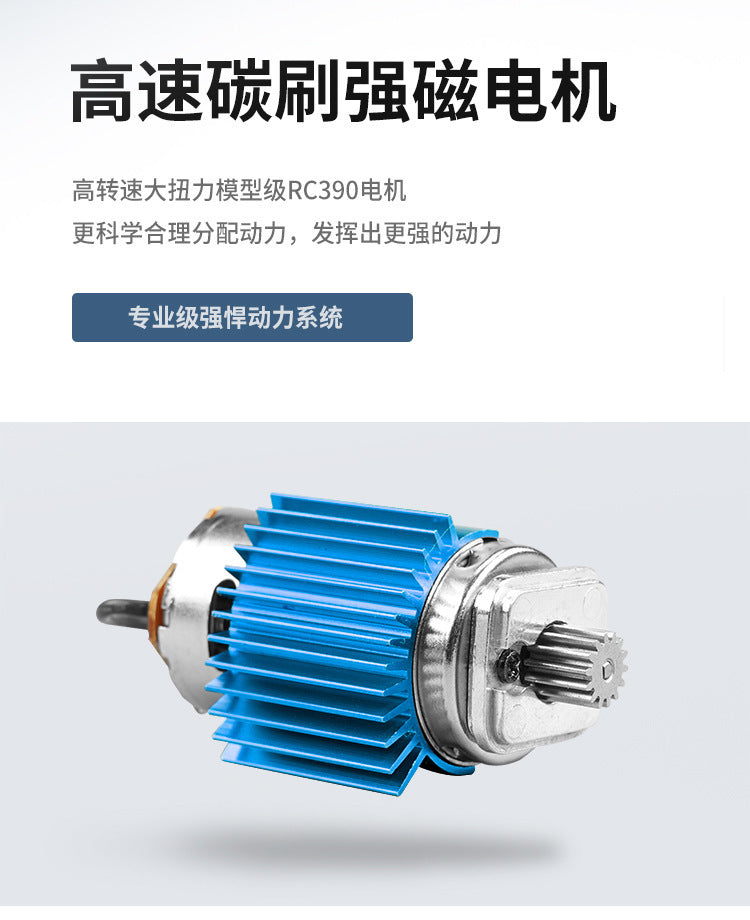

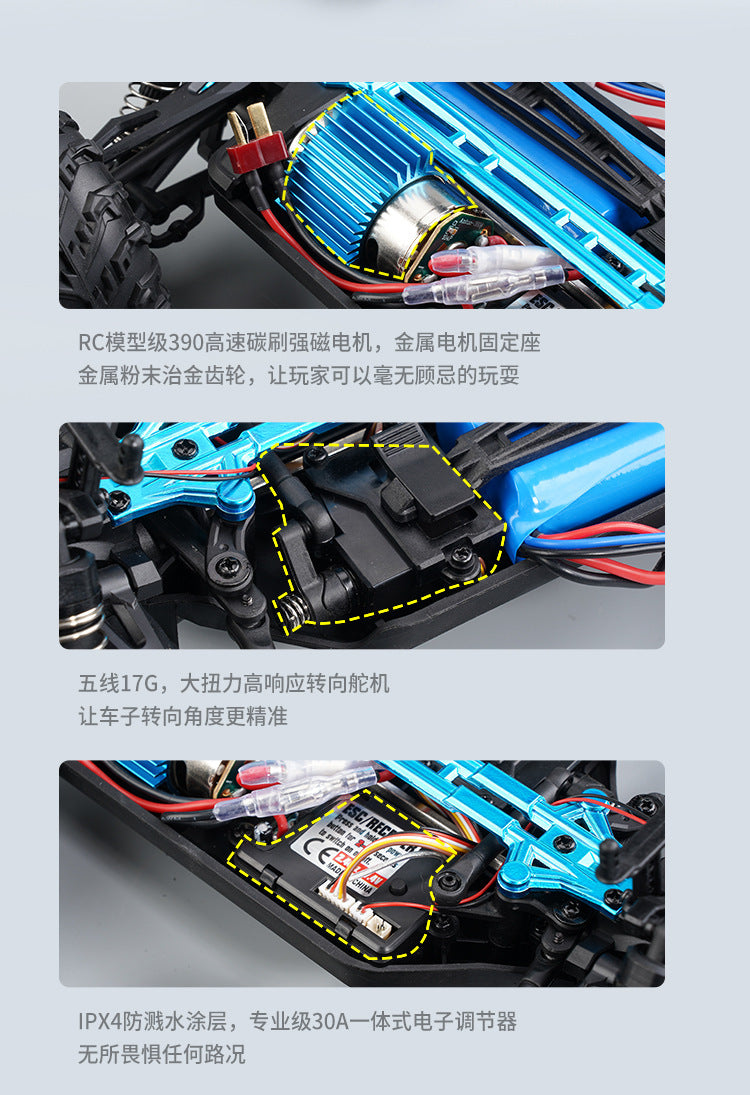

Motor: RC390 high-speed carbon brush strong magnet (magnet protection + heat sink)

Electrical control/reception: Integrated electrical control/reception system (splash-proof)

Body battery: 7.4V 1300mAH lithium-ion battery

Servo: 5-wire, 17g

Remote control batteries: 3 “AA” batteries (not included)

Charger: USB cable charger

Frequency: 2.4GHz (supports multiple vehicles competing in the same arena)

Remote control distance: ≥ 80m

Remote control category: Full-scale proportional synchronization control system (gun control)

Control time: 12-15 minutes (continuously running at full speed)

Charging time: 2-2.5 hours (USB cable charger)

Wheelbase parameters: Wheelbase: 185mm; Wheel spacing: 188mm; Wheel diameter: 85mm;

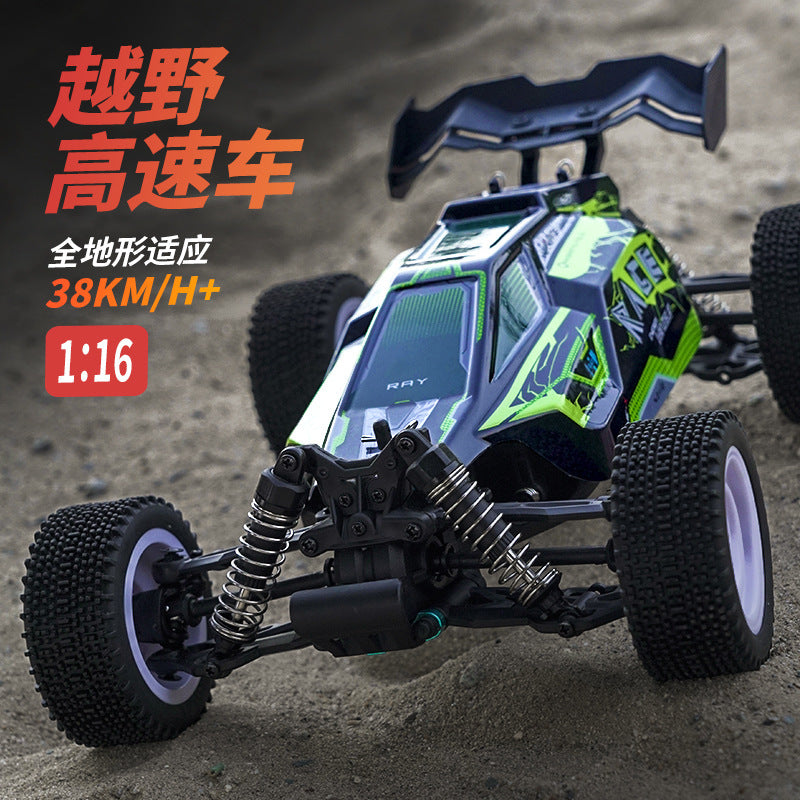

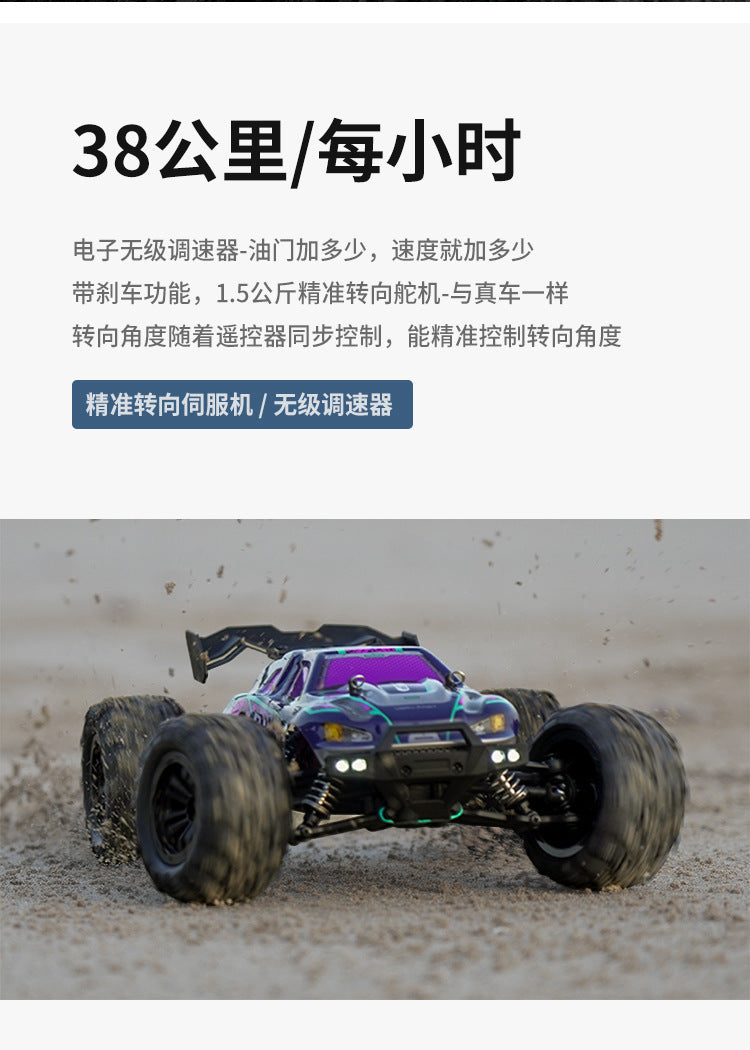

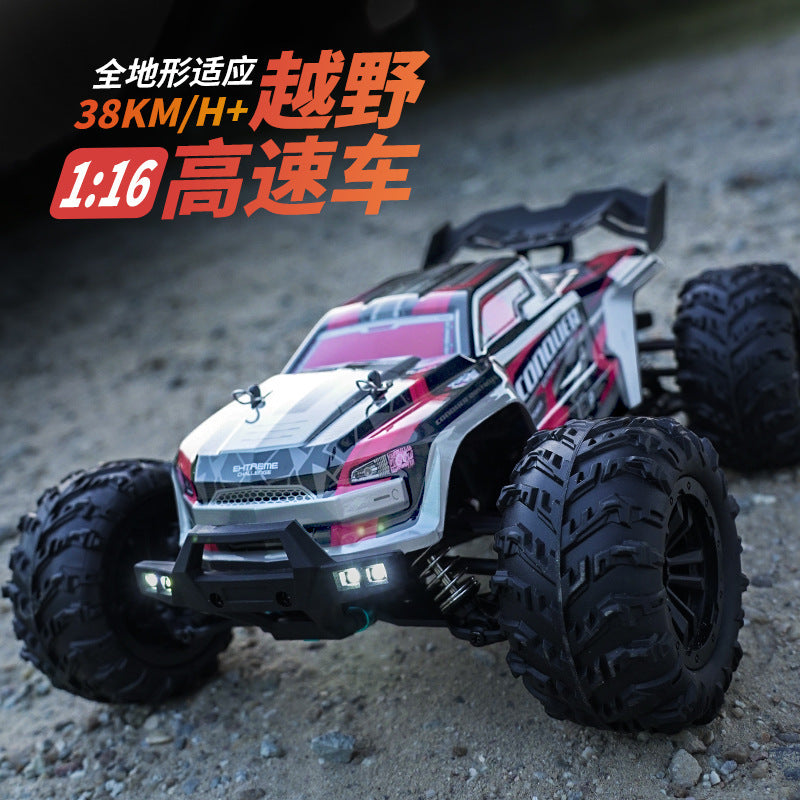

Speed: 38 kilometers per hour

Protection functions: 1. Overcharge; 2. Stuck; 3. High temperature; 4. Low voltage

Accessories: 1) Complete vehicle; 2) Remote control; 3) English product manual; 4) Lithium battery; 5) USB charger; 6) Tail wing; 7) Headlight; 8) Shock absorber adjustment buckle; 9) Metal pin; 10) Metal latch;

Note:
1: Charging protection: Constant current and constant voltage balanced charging, with protection against overcharging and overcurrent of the battery.
2: Motor anti-stall protection: When operating at overload, the motor stops working.
3: High-temperature protection: When the operating temperature exceeds the set value, the drive control circuit stops working and resumes operation after the temperature drops to a safe level.
4: Low-voltage shutdown function for electronic control, automatically cuts off power when the battery falls below approximately 6.3-6.4V, preventing battery over-discharge and damage

Product Parameter Configuration

1. It features a simulated structural design, offering the control feel of a real car, enabling full-scale stepless gear shifting, high-speed driving, rapid acceleration, deceleration, braking, reverse, left turn, and right turn
2. Suitable for: flat ground, sandy ground, muddy ground, grassland.

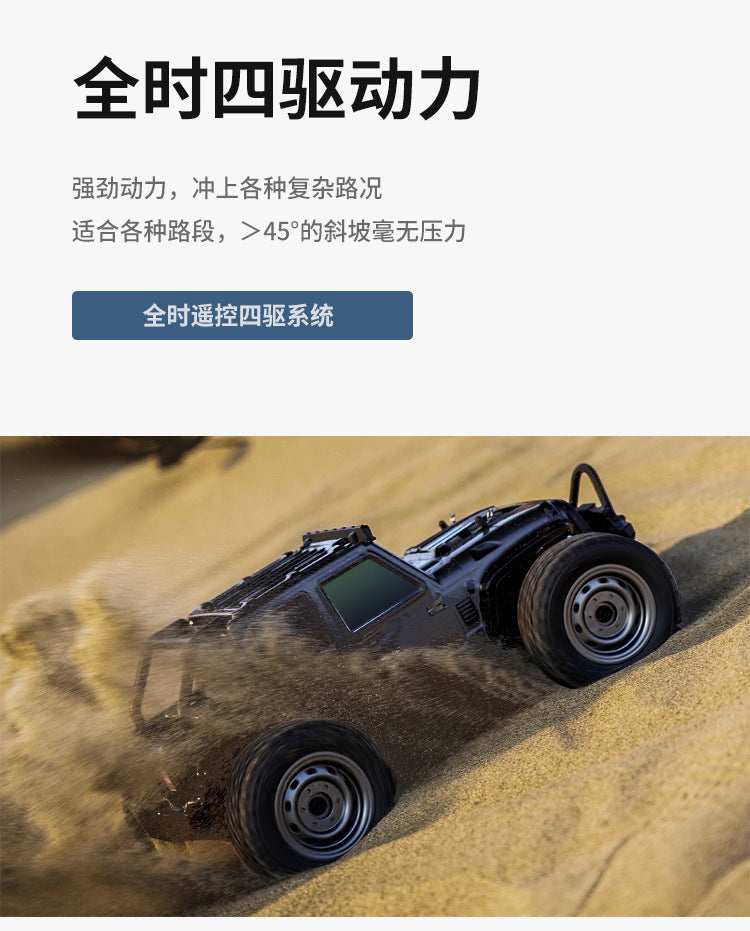

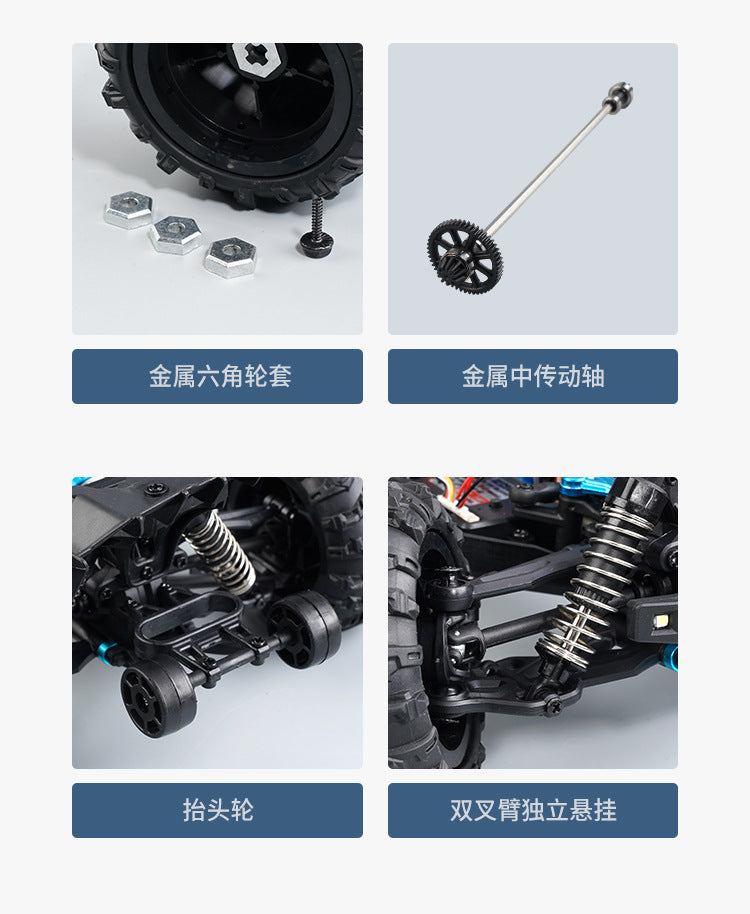

4. Four-wheel drive: Front and rear upright spring shock absorbers, double wishbone independent suspension system;
3. 2.4G full-scale synchronized remote control system Full proportional throttle/steering;

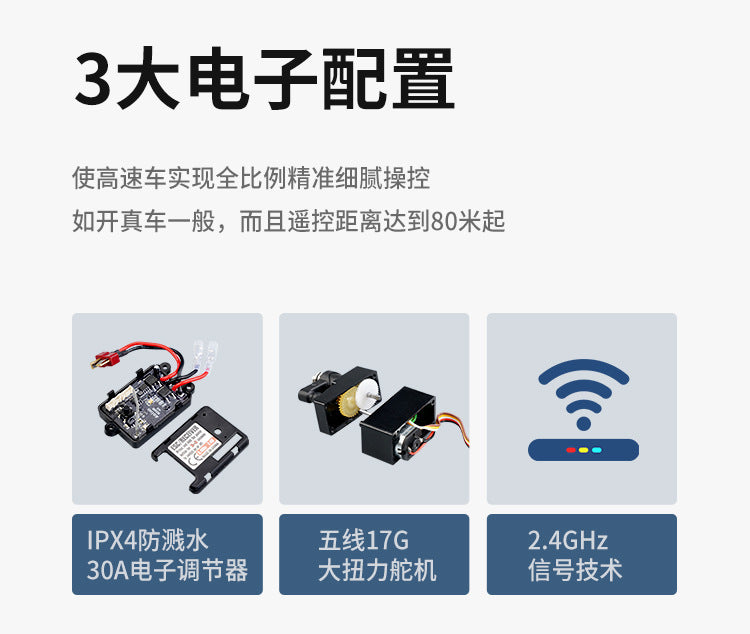

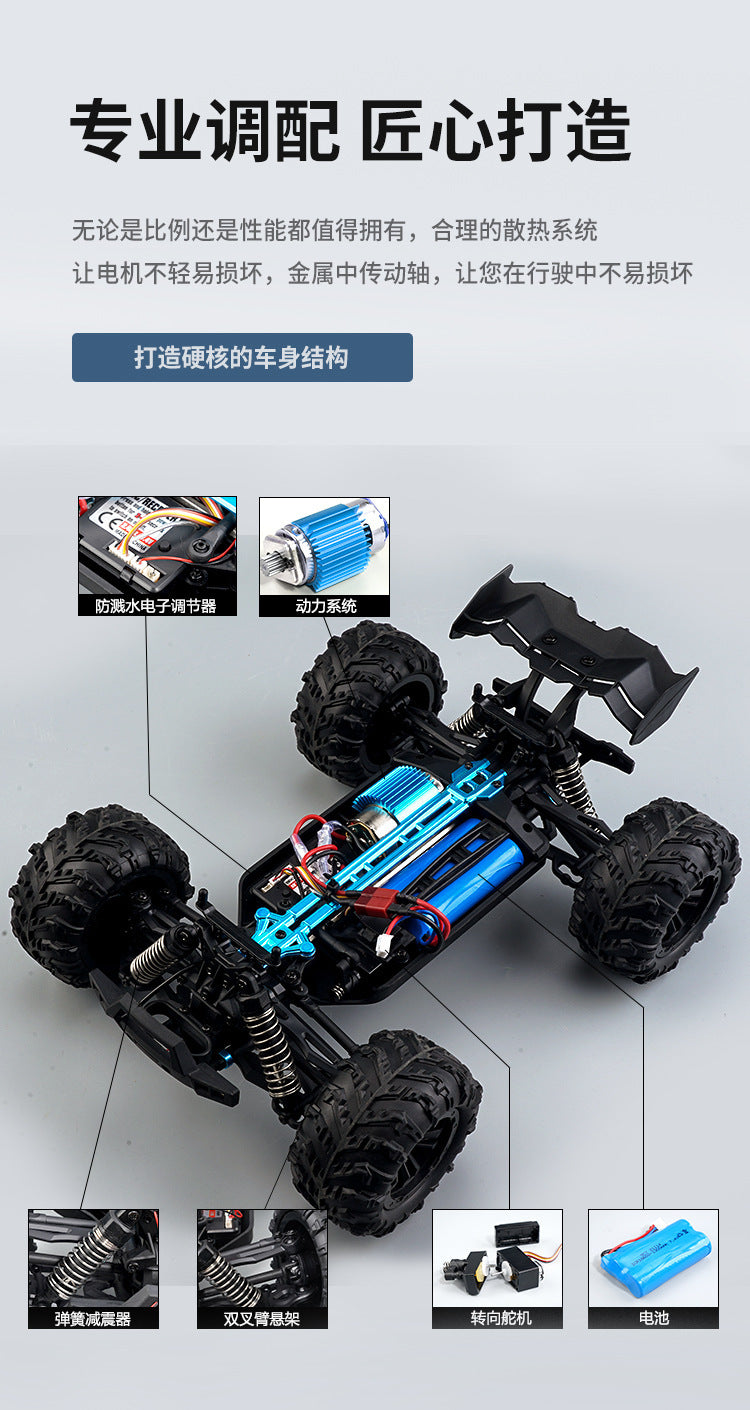

5. 2.4G splash-proof four-channel 30A integrated ESC/receiver;
6. Front-wheel cross ball joint universal joint drive shaft, rear-wheel split dogbone drive shaft;
7. Five-wire 17G servo motor;

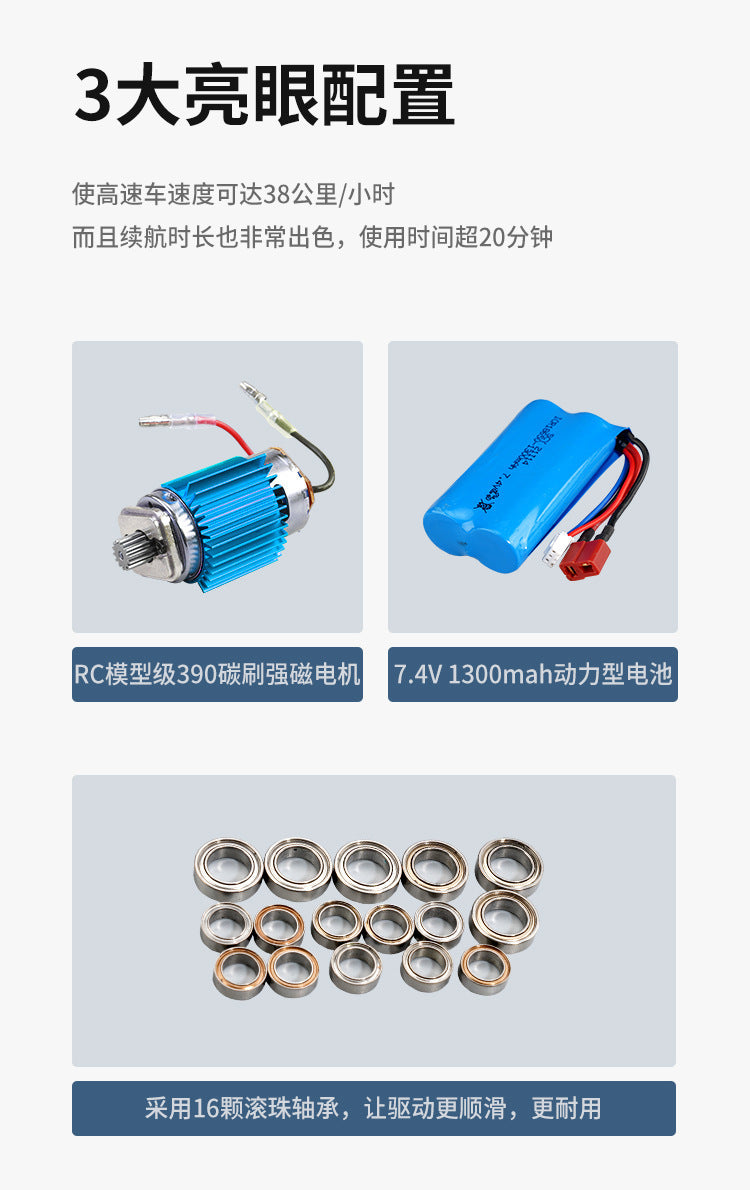

8. Super strong battery power: 7.4V, 18650-1300mAh Li-ion battery (T plug), discharge rate 10C;
9. The entire vehicle uses 16 ball bearings;
10. Metal second floor plate, metal front and rear arm brackets, metal central transmission shaft;

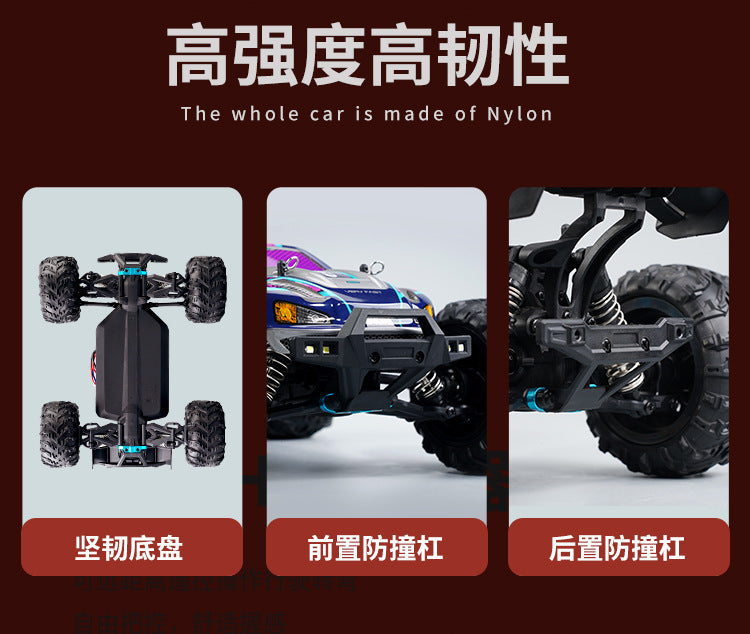

11. The car shell is made of high-toughness, explosion-proof PVC

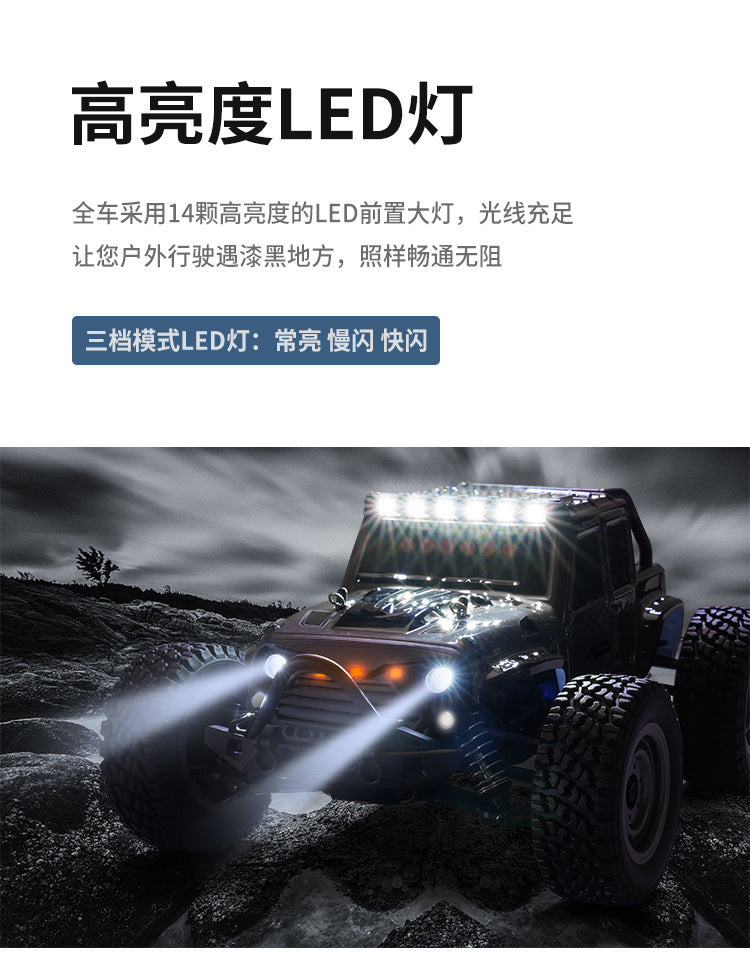

12. Equipped with LED front lights; (three modes: steady light, slow flashing, fast flashing);
13. Equipped with a head-up wheel;

Certificates: EN71, 10P, PAHS, CD, EN62115, EN60825, ASTM, HR4040, CA65, CPC

Note: To save space on the packaging, the tail wing has been disassembled at the factory and placed in the accessory bag, along with screws and a screwdriver, for the consumer to install themselves.
